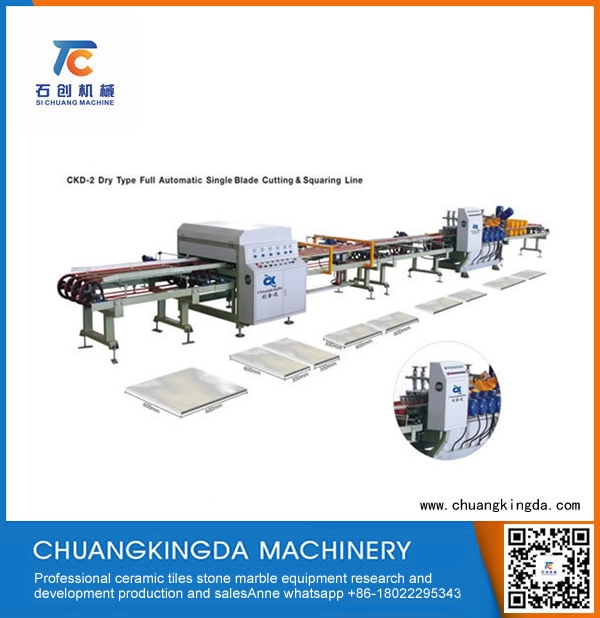

Series dry type automatic ceramic tiles cutting squaring production line

Main function:

This machine is suitable for tiles with thin tile, rustic tiles,

polishing tiles and porcelain, such as 600-800mm 800-1200mm,

capacity is 5500sqm/24hours

( take 600*600mm cut to 600*300mm for example)

INQUIRY

PRODUCT DETAIL

Description:

Series dry type automatic ceramic tiles cutting squaring production line is best choice for cut the tiles into 2pcs and 4 pcs (vertical) with large capacity. Automatic adjust cutting size, its convenient for adjust different cutting size, after followed new squaring and chamfering machine which will out of trouble with the move guard.

Main function:

This machine is suitable for tiles with thin tile, rustic tiles, polishing tiles and porcelain, such as 600-800mm 800-1200mm, capacity is 5500sqm/24hours ( take 600*600mm cut to 600*300mm for example)

Equipment Technical parameter:

type	Power of conveying belt	Power of cutting	Tuming motor power	Total power	Blades QTY.	Belt type	Belt wheel dia.	speed	dimension	Total weight
(5+1)	0.75kw	0.37kw	0.37kw	27.8kw	1pcs	C type	¢260	13pcs/min	1433020001500mm	4000kgs
